Nemesis OSCA-BREAKOUT

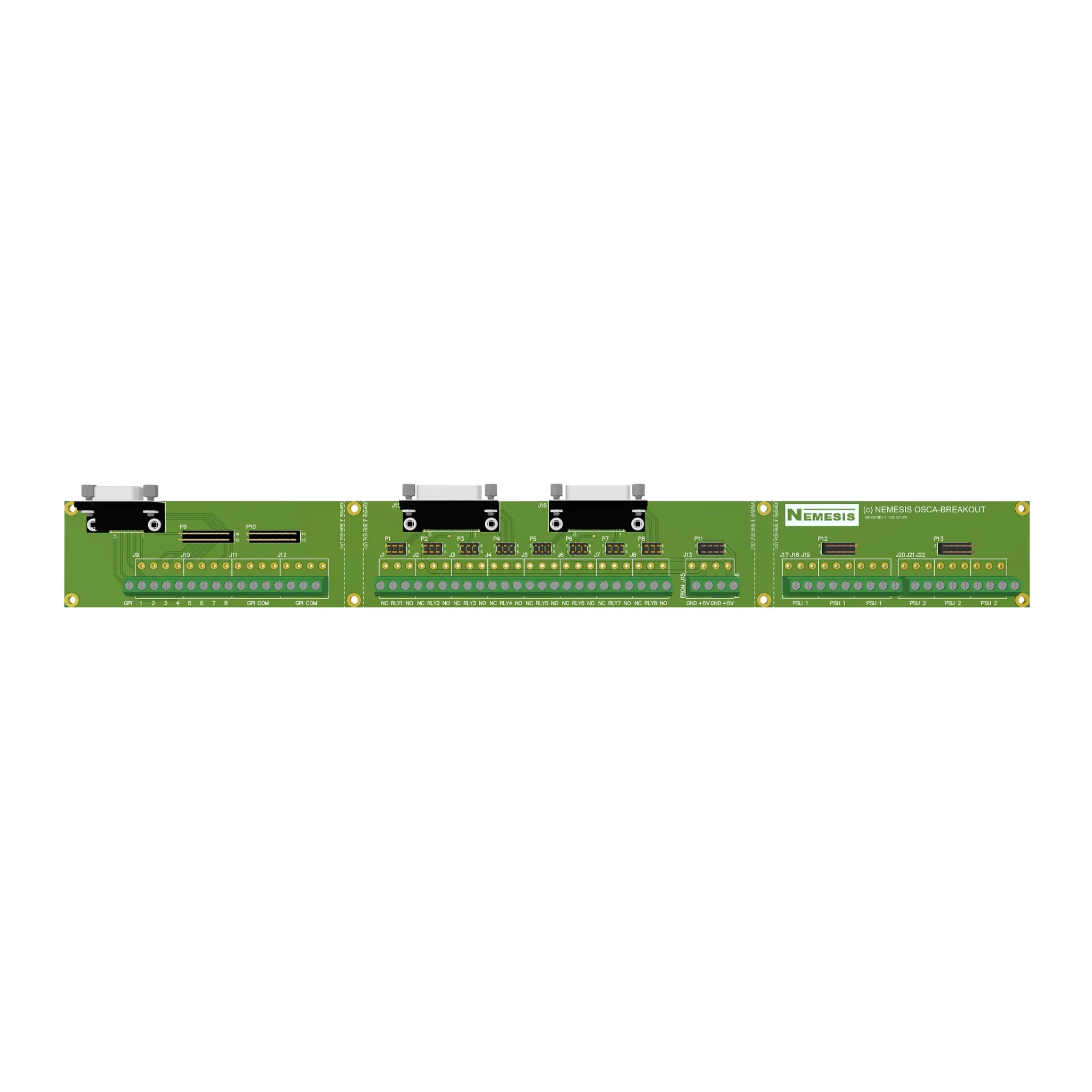

The OSCA-BREAKOUT is designed to be used with OSCA range controllers in temporary installations and goes hand in hand with the OSCA-IO16. The PCB is designed to adapt the D-SUB connectors on OSCA controllers to any 5mm pitch wire via the fitted screw terminals.
The OSCA-BREAKOUT is designed to be fixed to a 1U panel. Optional headers can be fitted to allow easy linking of terminals with DuPont wires (e.g. Farnell part 3617772) - Headers not included.
The OSCA-BREAKOUT also features two sets of parallel terminals. The are designed to distribute a power supply to the GPIO as required, but could be used for any purpose.
The OSCA-BREAKOUT can be cut with a hacksaw as marked if only parts of the PCB are required. (for example if used with an OSCA-I8)
Supplied in the box:
- OSCA-BREAKOUT
